Smart Glass Plus+

Laminated Glass with Ultra Clarity

images

Ultra Clear

Utilizes ultra-clear glass, which enhances both the aesthetic and functional qualities of the glass, improving visual clarity and reducing the visual distortion.

images

UV and IR Blocking

Continues to provide high UV and IR blocking capabilities (>99% UV block and >86% IR block), which is for protecting interiors from harmful UV rays and heat.

images

Size Availability

Offers large maximum sizes for each configuration, accommodating expansive architectural applications without compromising performance.

images

Better Sound Insulation

Compared with ordinary glass, the anti-noise ability of glass enhanced with PDLC film is significantly increased by 20%, providing a serene environment.

Plus+ Smart Glass Technology

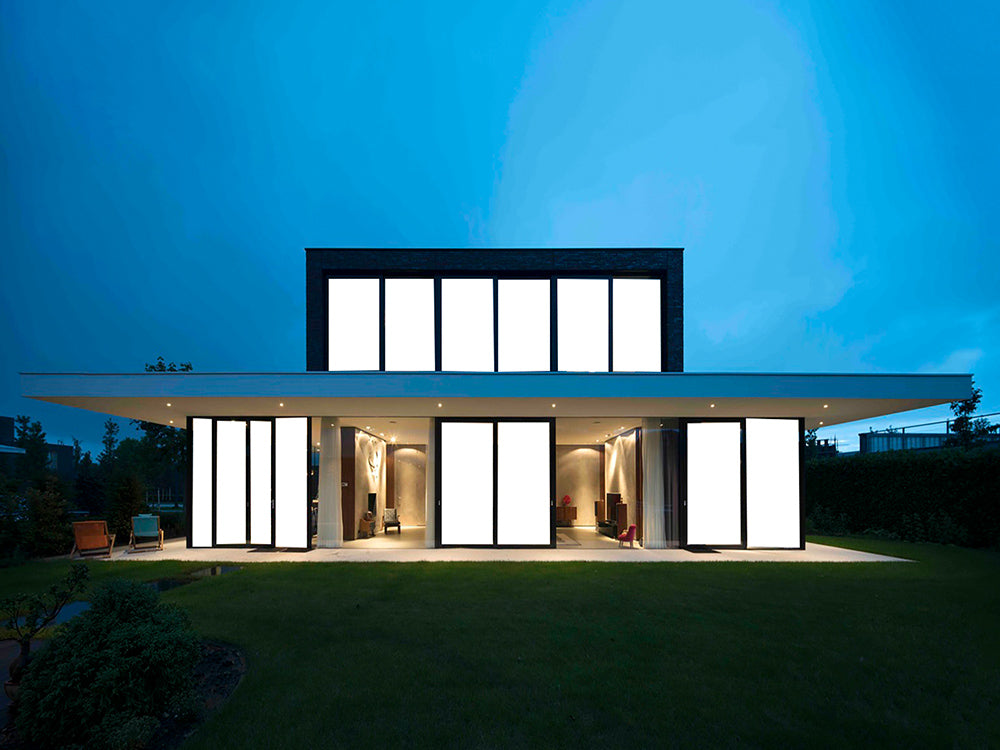

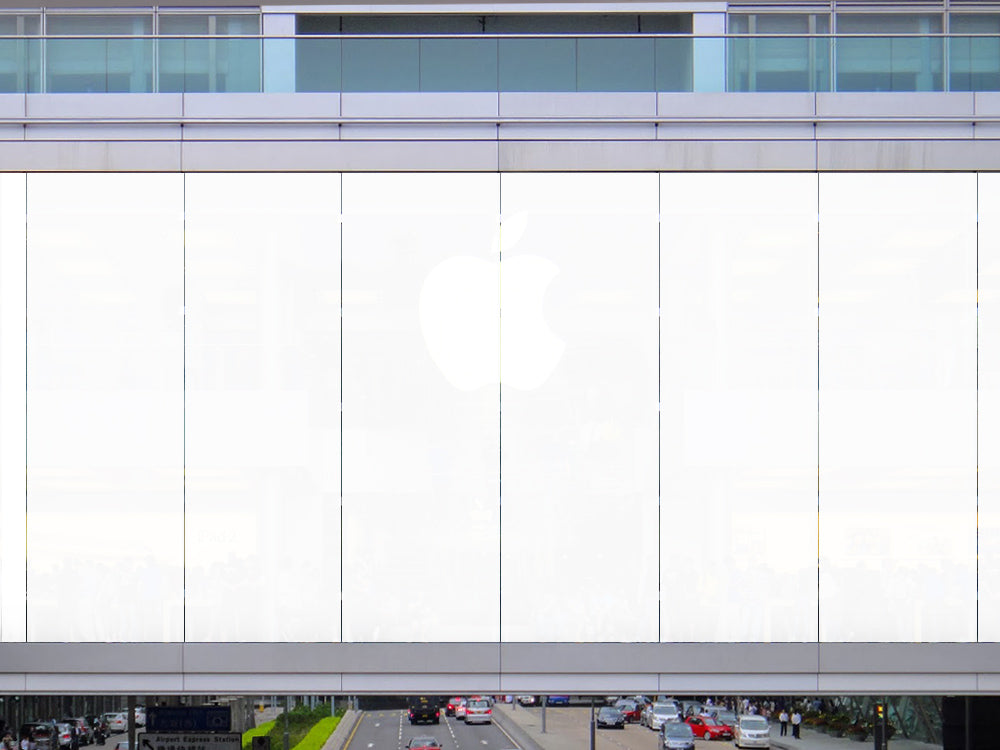

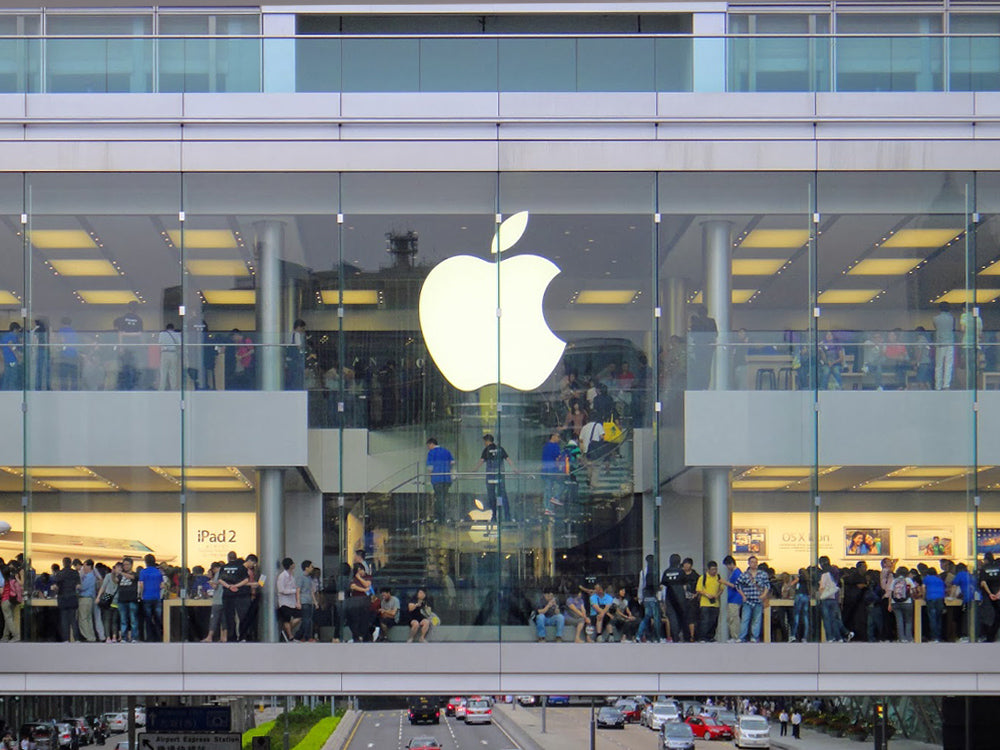

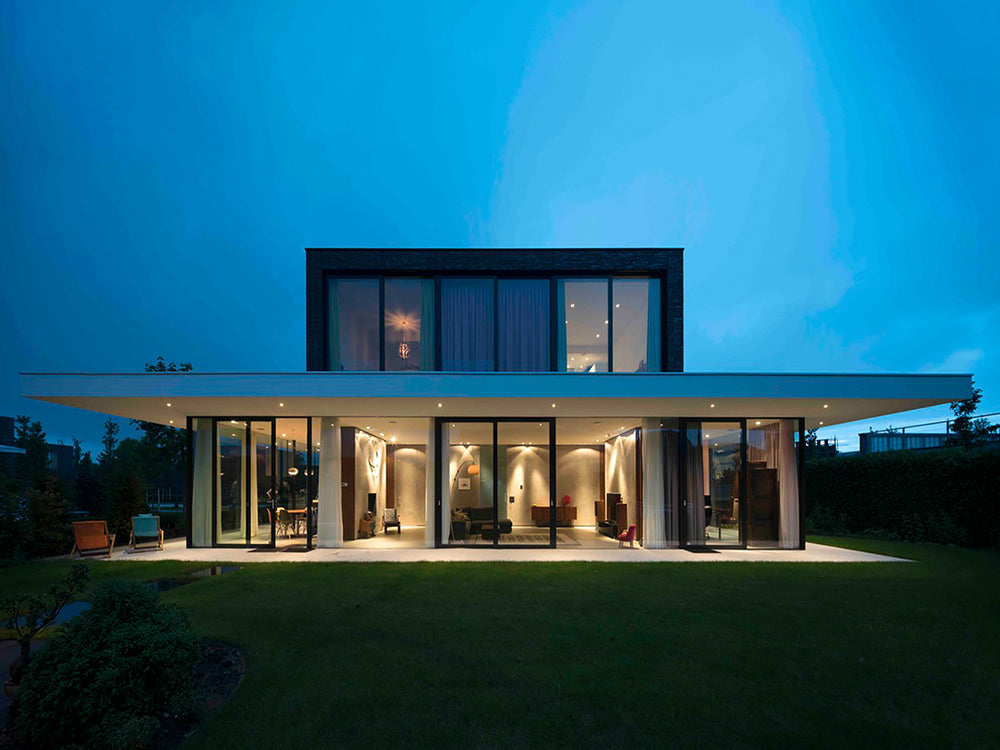

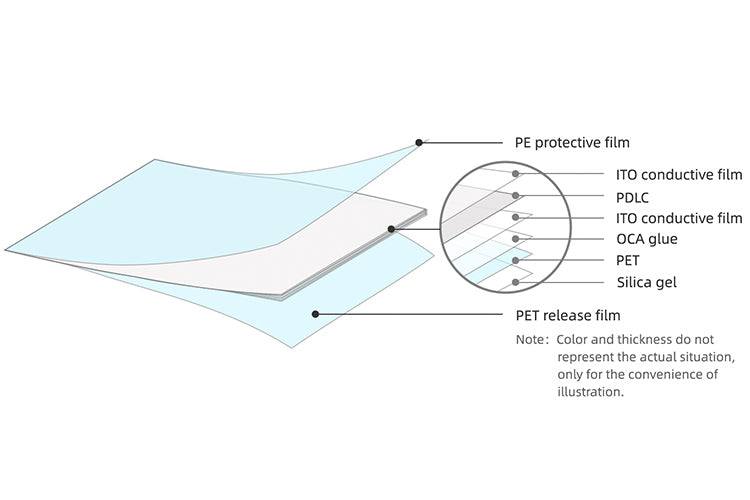

PDLC (Polymer Dispersed Liquid Crystal) technology allows glass to switch between transparent and opaque states by applying an electrical current.
Images
Images

6 Thickness Configurations

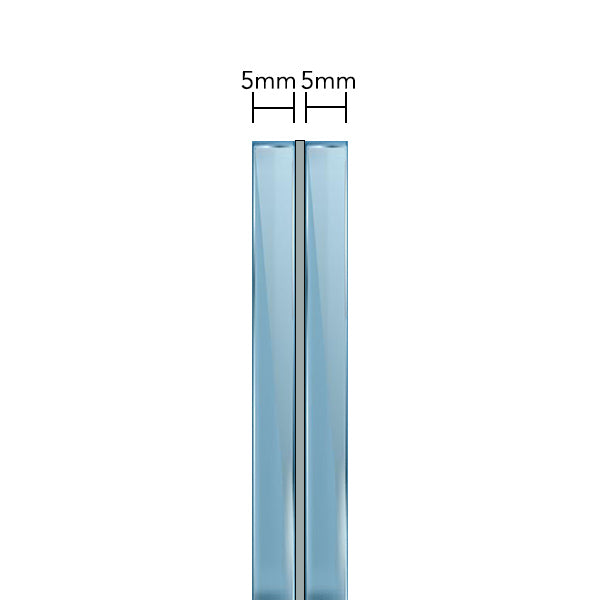

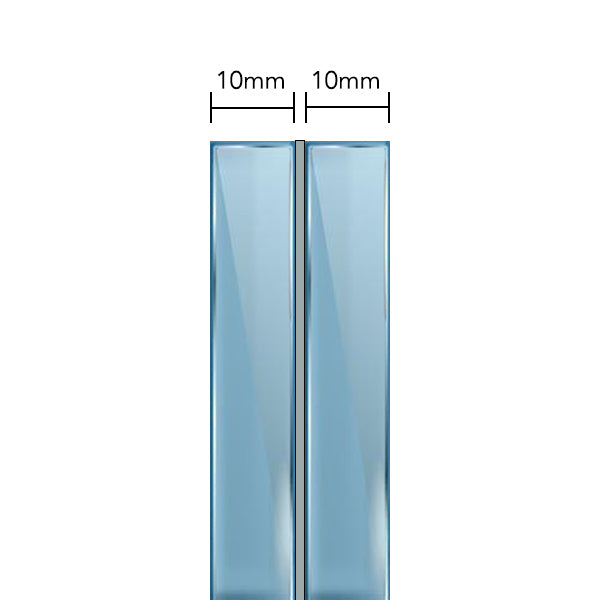

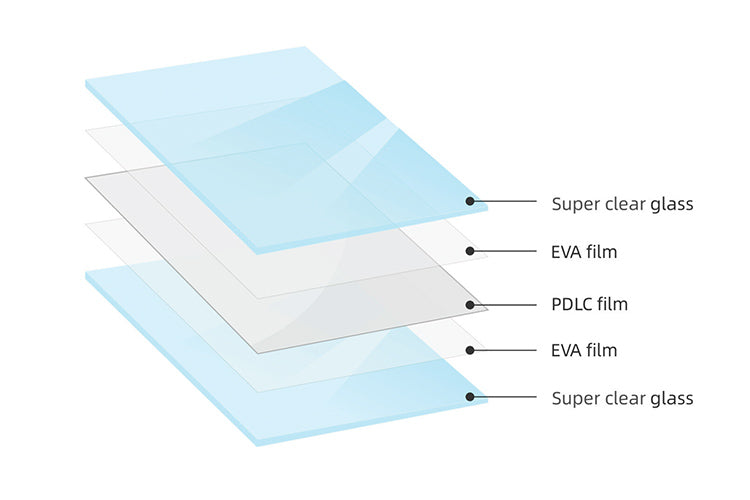

Filmbase PDLC PLUS+ Laminated Smart Glass is available in six thickness configurations to cater to various structural and design needs: 4mm+PDLC+4mm (0404), 5mm+PDLC+5mm (0505), 6mm+PDLC+6mm (0606), 8mm+PDLC+8mm (0808), 10mm+PDLC+10mm (1010), and 12mm+PDLC+12mm (1212).

3 PDLC Transparency Options

Filmbase PDLC Laminated Smart Glass is available in three transmittance levels: 85%, 88%, and 91%.

085 Plus+ High Clarity

085 SMART FILMS ( 84-86% Transmittance )

Filmbase 085 Plus Smart Glass offers an exceptional blend of clarity and performance, designed with ultra-clear, Low-E glass to maximize natural light while ensuring optimal privacy when needed. With a light transmittance of up to 82% when activated, this glass is perfect for environments that require seamless transitions between transparency and privacy. The low haze rating enhances visual comfort, making it ideal for residential windows or office partitions where daylight enhancement and privacy are key. Additionally, its energy-efficient properties help reduce heating and cooling costs, making it a smart choice for eco-conscious designs.

banner_image before
banner_image after

087 Plus+ Super Clear

087 SMART FILMS ( 87-89% Transmittance )

Filmbase 087 Plus Smart Glass steps up the visual clarity with an even lower haze rating, providing a virtually distortion-free view when switched on. This model boasts an improved light transmittance of up to 83%, offering a crystal-clear environment ideal for high-end retail locations or sophisticated boardrooms that benefit from a bright and inviting atmosphere. Equipped with superior UV and IR blocking, the 087 Plus protects interiors from fading and heat gain while ensuring comfort and lower energy costs. Its durability and easy maintenance make it a practical investment for businesses looking for long-term value.

banner_image before
banner_image after

091 Plus+ Ultra Clear

091 SMART FILMS ( 90-92% Transmittance )

Filmbase 091 Plus Smart Glass represents the pinnacle of the Plus series, with the highest light transmittance of up to 87%, providing unparalleled clarity and luminosity for the most demanding applications. This premium option is suited for luxury environments such as high-end boutiques, exclusive art galleries, or executive spaces that require the best in visual clarity and light control. The rapid switching capability from clear to opaque and back allows for dynamic adjustments to lighting and privacy, offering flexibility in use and enhancing the user experience. The 091 Plus merges high performance with elegant aesthetics, making it the ultimate choice for those who accept no compromises in quality and functionality.

banner_image before
banner_image after

Why Laminated Glass?

Traditional Glass

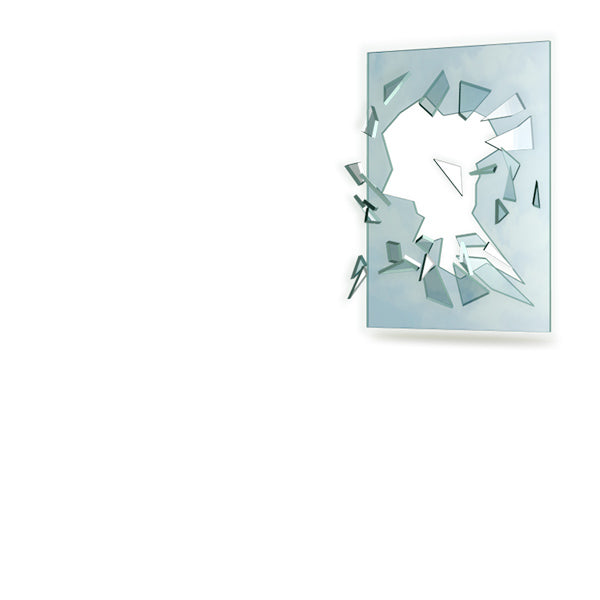

Annealed Glass

Breaks easily into long, sharp splinters, posing higher injury risk; suitable for basic uses.

Standard Quality Glass

Tempered Glass

Shatters into small, blunt pieces under higher levels of impact; ideal for safety-critical applications.

High Quality Glass

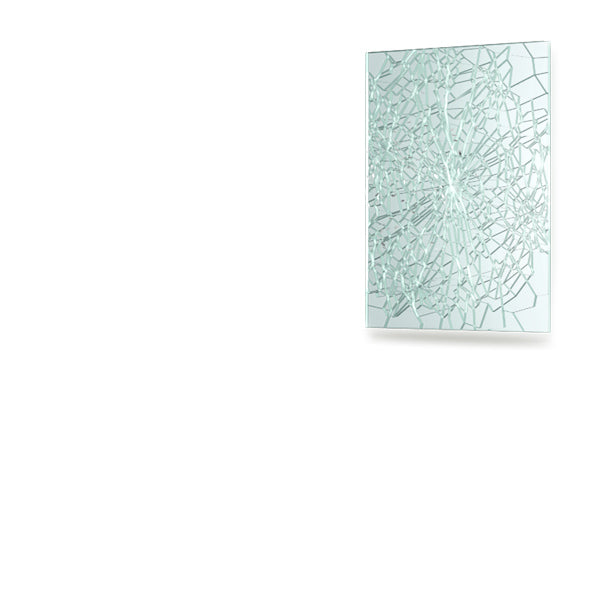

Laminated Glass

Cracks under pressure but holds together, adhering to its vinyl interlayer for added safety.

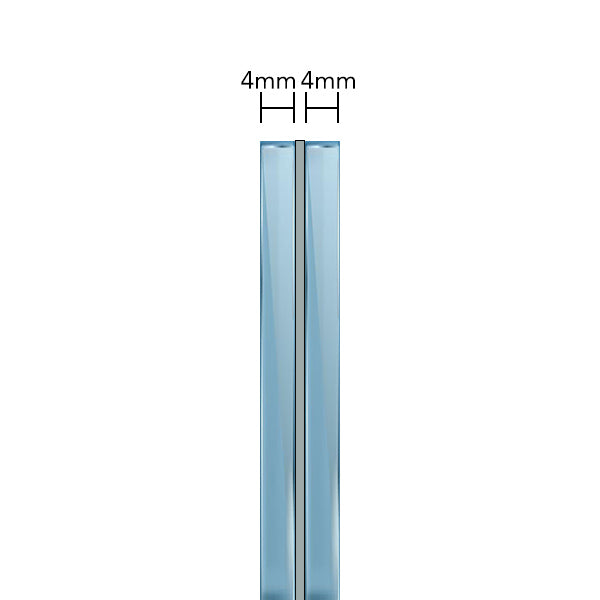

Filmbase Smart Glass Parameters - 0404 Plus+

4mm+PDLC+4mm

Items 085 PDLC film 087 PDLC film 091 PDLC film
Film Color White White White
Haze (on) 6% 4% 4%
Haze (off) 94% 94% 94%
Light Transmittance (on) 87% 85% 84%
Light Transmittance (off) 75% 74% 72%
UV Block >99% >99% >99%
IR Block >86% >86% >86%
Power Consumption 5W/m² 5W/m² 5W/m²
Compatible with Eva Eva Eva
Biggest Size 1800x2400mm 1800x2400mm 1800x2400mm
Input Voltage 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz
Glass Types Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other

Filmbase Smart Glass Parameters - 0505 Plus+

5mm+PDLC+5mm

Items 085 PDLC film 087 PDLC film 091 PDLC film
Film Color White White White
Haze (on) 6% 4% 4%
Haze (off) 94% 94% 94%
Light Transmittance (on) 81% 82% 84%
Light Transmittance (off) 69% 70% 72%
UV Block >99% >99% >99%
IR Block >86% >86% >86%
Power Consumption 5W/m² 5W/m² 5W/m²
Compatible with Eva Eva Eva
Biggest Size 2000x2800mm 2000x2800mm 2000x2800mm
Input Voltage 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz
Glass Types Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other

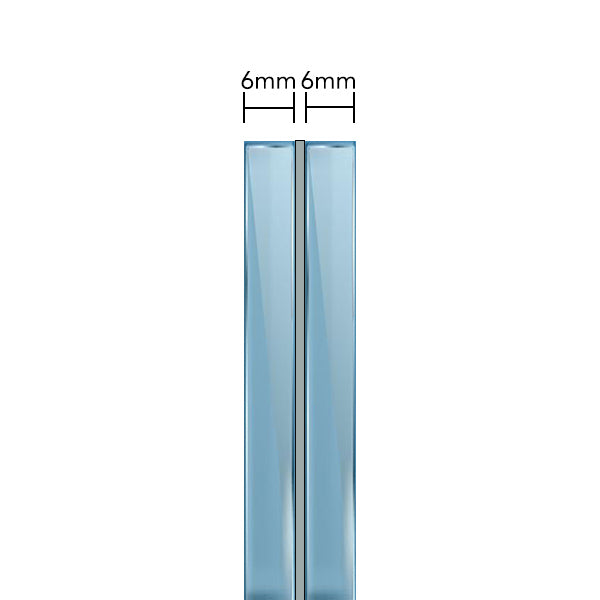

Filmbase Smart Glass Parameters - 0606 Plus+

6mm+PDLC+6mm

Items 085 PDLC film 087 PDLC film 091 PDLC film
Film Color White White White
Haze (on) 6% 4% 4%
Haze (off) 94% 94% 94%
Light Transmittance (on) 82% 83% 84%
Light Transmittance (off) 68% 69% 72%
UV Block >99% >99% >99%
IR Block >86% >86% >86%
Power Consumption 5W/m² 5W/m² 5W/m²
Compatible with Eva Eva Eva
Biggest Size 2000x3000mm 2000x3000mm 2000x3000mm
Input Voltage 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz
Glass Types Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other

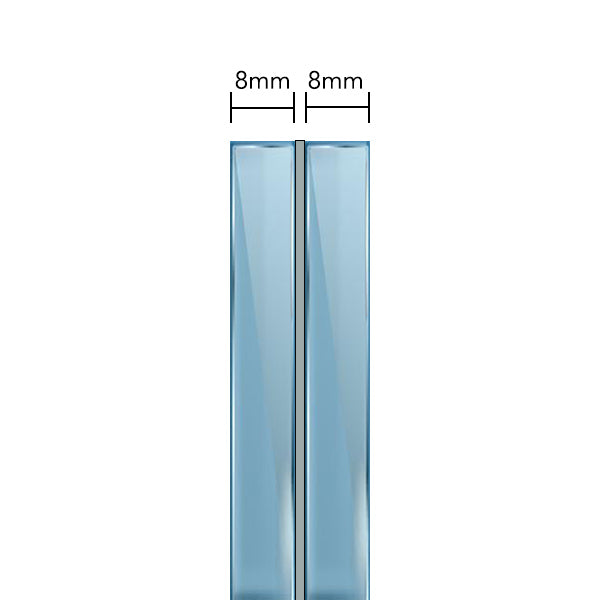

Filmbase Smart Glass Parameters - 0808 Plus+

8mm+PDLC+8mm

Items 085 PDLC film 087 PDLC film 091 PDLC film
Film Color White White White
Haze (on) 6% 4% 4%
Haze (off) 94% 94% 94%
Light Transmittance (on) 84% 85% 86%
Light Transmittance (off) 71% 72% 74%
UV Block >99% >99% >99%
IR Block >86% >86% >86%
Power Consumption 5W/m² 5W/m² 5W/m²
Compatible with Eva Eva Eva
Biggest Size 2000x4000mm 2000x4000mm 2000x4000mm
Input Voltage 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz
Glass Types Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other

Filmbase Smart Glass Parameters - 1010 Plus+

10mm+PDLC+10mm

Items 085 PDLC film 087 PDLC film 091 PDLC film
Film Color White White White
Haze (on) 6% 4% 4%
Haze (off) 94% 94% 94%
Light Transmittance (on) 85% 86% 87%
Light Transmittance (off) 67% 68% 69%
UV Block >99% >99% >99%
IR Block >86% >86% >86%
Power Consumption 5W/m² 5W/m² 5W/m²
Compatible with Eva Eva Eva
Biggest Size 2000x5000mm 2000x5000mm 2000x5000mm
Input Voltage 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz
Glass Types Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other

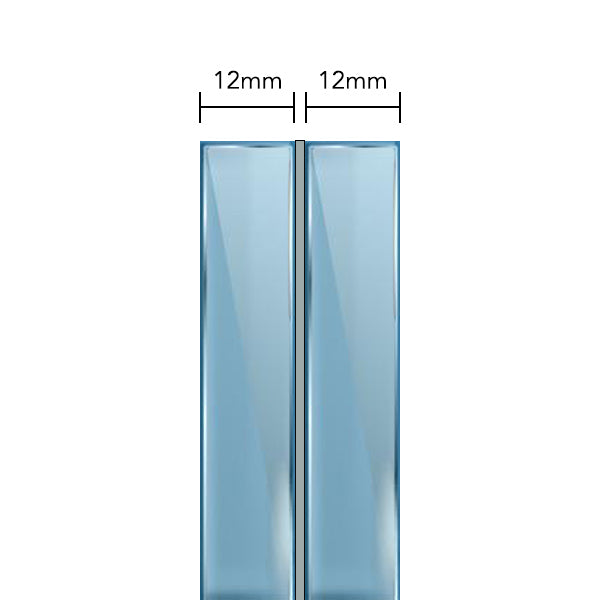

Filmbase Smart Glass Parameters - 1212 Plus+

12mm+PDLC+12mm

Items 085 PDLC film 087 PDLC film 091 PDLC film
Film Color White White White
Haze (on) 6% 4% 4%
Haze (off) 94% 94% 94%
Light Transmittance (on) 80% 81% 84%
Light Transmittance (off) 61% 62% 65%
UV Block >99% >99% >99%
IR Block >86% >86% >86%
Power Consumption 5W/m² 5W/m² 5W/m²
Compatible with Eva Eva Eva
Biggest Size 2000x6000mm 2000x6000mm 2000x6000mm
Input Voltage 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz 100-120v 60Hz / 220-240v 50Hz
Glass Types Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other Flat, Curved, Tempered, Ultra Clear, Low-E, Other
