Smart Film, also known as PDLC (Polymer Dispersed Liquid Crystal) film, is a switchable glass film that can change between transparent and opaque states with the flip of a switch. It operates using liquid crystal molecules embedded in the film, which align when an electric current is applied, making the film clear. When the current is off, the film becomes opaque for privacy or light diffusion.
Insulated Glass Unit (IGU)
Argon-filled insulation enhances thermal efficiency, reduces heat transfer, and improves energy savings while maintaining comfort.
Privacy Protection
To protect privacy and security, control transparency or opacity anytime. Make your space versatile—choose open or private at will.
Size Availability
Offers large maximum sizes for each configuration, accommodating expansive architectural applications without compromising performance.
Multiple Control Options
Available control options include remote, wired, infrared, voice command, mobile app, or an FM transformer for gradual film transitions.
Insulated Glass Unit + PDLC Film

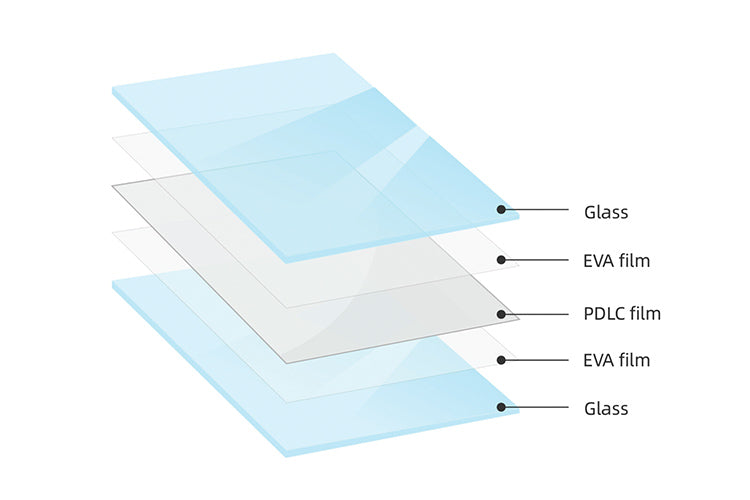

Our FACADE smart Insulated Glass Unit combines the benefits of double-pane insulated glass or multi-pane with PDLC smart film technology, delivering privacy, energy efficiency, and modern aesthetics in one solution. Featuring argon gas insulation, it reduces heat transfer and improves thermal performance. The integrated PDLC film, laminated within the sealed space, allows the glass to switch from transparent to opaque instantly with a simple power control. This eliminates the need for curtains or blinds, offering UV protection, sound insulation, and sleek, modern design. Ideal for residential, commercial, and high-tech applications, Smart IGU transforms spaces with dynamic privacy and energy savings.
Facade - Insulated Smart Glass
091 SMART FILMS ( 90-92% Transmittance )
The Filmbase FACADE Series is a high-performance Insulated Glass Unit (IGU) with integrated PDLC smart film, offering switchable privacy, energy efficiency, and advanced light control. Available in three transmittance options, it adapts to different lighting needs. FACADE 091 provides up to 77% light transmittance, maximizing brightness and clarity. FACADE 087 offers 75% transmittance, balancing visibility and privacy. FACADE 085 features 72% transmittance, ideal for spaces requiring more controlled lighting. With over 99% UV blocking, 86% IR blocking, and argon-filled insulation, it enhances thermal efficiency and occupant comfort. The FACADE Series seamlessly transitions from transparent to opaque, making it the perfect solution for modern architecture, luxury interiors, and high-performance facades.
Filmbase FACADE
Insulated Glass with Integrated PDLC Film
| Items | 085 PDLC Film | 087 PDLC Film | 091 PDLC Film |
|---|---|---|---|
| Film Color | White | White | White |
| Haze (on) | 6% | 4% | 44% |
| Haze (off) | 94% | 94% | 94% |
| Light Transmittance (on) | 72% | 75% | 77% |
| Light Transmittance (off) | 60% | 63% | 65% |
| UV Block | >99% | >99% | >99% |
| IR Block | >86% | >86% | >86% |
| Power Consumption | 5W/m² | 5W/m² | 5W/m² |
| Compatible with | Eva | Eva | Eva |
| Biggest Size | 1800x3600mm | 1800x3600mm | 1800x3600mm |
| Input Voltage | 100-120v 60Hz / 220-240v 50Hz | ||
| Glass Types | Flat, Curved, Tempered, Ultra Clear, Low-E, Other | ||
